Jinlong 30-Egg Circulating Tray – Stackable Layer, Breeder & Quail Egg Trays for Poultry Farms
Product Overview
Jinlong's 30-Egg Circulating Tray series is a comprehensive range of professional egg trays designed for every stage of modern poultry production. From standard layer farm collection to specialized hatchery use, our egg tray lineup covers all application scenarios with precision-engineered models.
Available in 11 distinct models, Jinlong egg trays are manufactured from 100% virgin material (PP, PE, or HDPE) with stackable design for maximum storage efficiency. Special-purpose models include heat-resistant trays (up to 120°C), washing-machine-compatible trays, robot-gripper-compatible trays, quail egg trays, and 36-egg breeder trays – ensuring the right solution for every farm operation.
Detail Drawing
7 Key Features & Benefits
1. Stackable Design – All models feature interlocking stackable geometry. Maximize vertical storage in egg rooms and hatcheries, reducing floor space requirements significantly.
2. Multiple Material Options (PP / PE / Heat-Resistant) – Choose from standard PE, standard PP, or heat-resistant PP (up to 120°C) based on your processing requirements. Heat-resistant models withstand egg washing and disinfection at elevated temperatures.
3. Washing Machine Compatible (Model 160M) – The 160M model is specifically engineered for automated egg washing lines, with reinforced structure and drainage design to withstand mechanical washing cycles.
4. Robot Gripper Compatible (Model 150) – Model 150 features precision-designed grip points compatible with automated robotic handling systems. Ideal for large-scale automated egg grading and packing lines.
5. Comprehensive Range: 30 / 36 / 72 Egg Capacity – Standard 30-egg trays for layers, 36-egg breeder trays (TE36) for fertile eggs, and 72-egg quail trays (TE72) – a complete one-stop solution for all poultry species.
6. Space-Efficient Packing – Ultra-compact packing: NO.130 packs 100 sets in only 0.042m³ – the most compact in the range. All 30-egg models ship in 0.042–0.07m³ per 100 sets.
7. Custom Color Options – Available in multiple colors for color-coded egg management (e.g., by flock, date, or product line). Custom colors available for bulk orders.
Full Model Specifications
| Model No. | Type | Size (cm) | Egg Holes | Packing (100 sets) | Special Feature |
| NO.130 | Standard | 30×30×5 | 30 | 0.042m³ | Most compact packing |
| PE160 | Standard PE | 30×30×5 | 30 | 0.056m³ | PE material |
| PP160 | Standard PP | 30×30×5 | 30 | 0.056m³ | PP material |
| NO.160 | Heat-Resistant | 30×30×5 | 30 | 0.056m³ | Withstands 120°C |
| NO.190 | Standard | 30×30×5 | 30 | 0.056m³ | Heavy-duty grade |
| TE30 专用 | Special Purpose | 30×30×5 | 30 | 0.056m³ | Specialized design |
| G90 | Large Nest Tray | 30×30×5.2 | 30 | 0.06m³ | Deep cup design |
| 160M | Washing Machine | 30×30×5.2 | 30 | 0.06m³ | Automated washer compatible |
| NO.150 | Robot Gripper | 30×30×5.2 | 30 | 0.06m³ | Robotic arm compatible |
| TE72 | Quail Egg | 30×30×3.7 | 72 | 0.07m³ | Quail egg size cups |
| TE36 | Breeder Egg | 28×28×6.5 | 36 | 0.29m³ | Deep cup for fertile eggs |
Which Model Is Right for You?
| Application Scenario | Recommended Model | Key Reason |
| Standard layer egg collection | NO.130 / PE160 / PP160 | Cost-effective, most compact packing |
| High-temperature washing/disinfection | NO.160 (120°C resistant) | Withstands heat sterilization cycles |
| Automated washing line | 160M (washing machine type) | Built for mechanical washer compatibility |
| Automated grading/packing line | NO.150 (robot gripper type) | Precision grip points for robotic arms |
| Breeder/fertile egg storage | TE36 (36-egg breeder tray) | Deep 6.5cm cup protects fertile eggs |

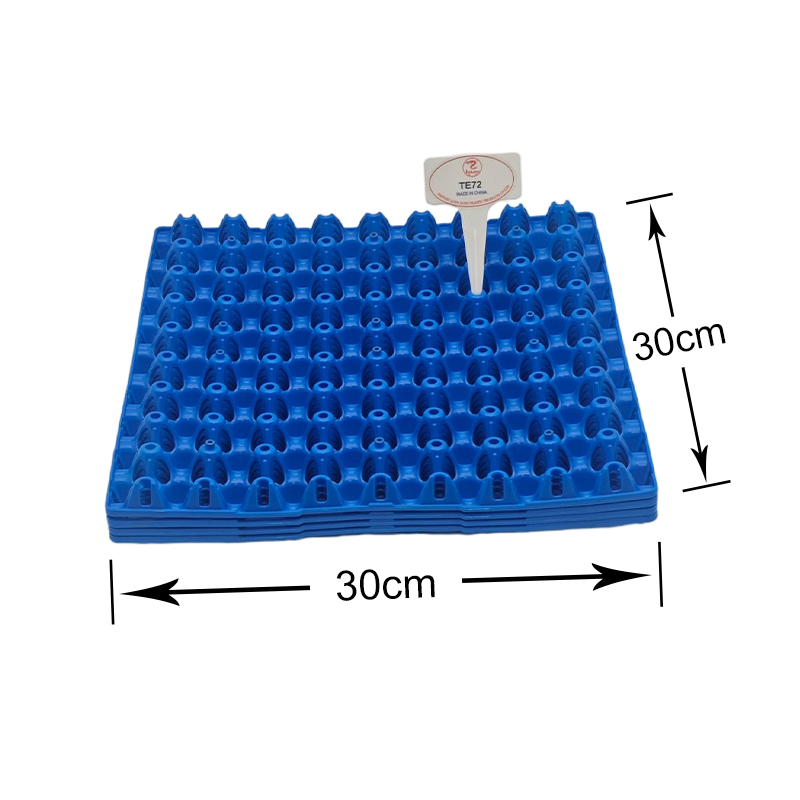

| Quail farm / quail egg collection | TE72 (72-quail egg tray) | Small cups sized for quail eggs |

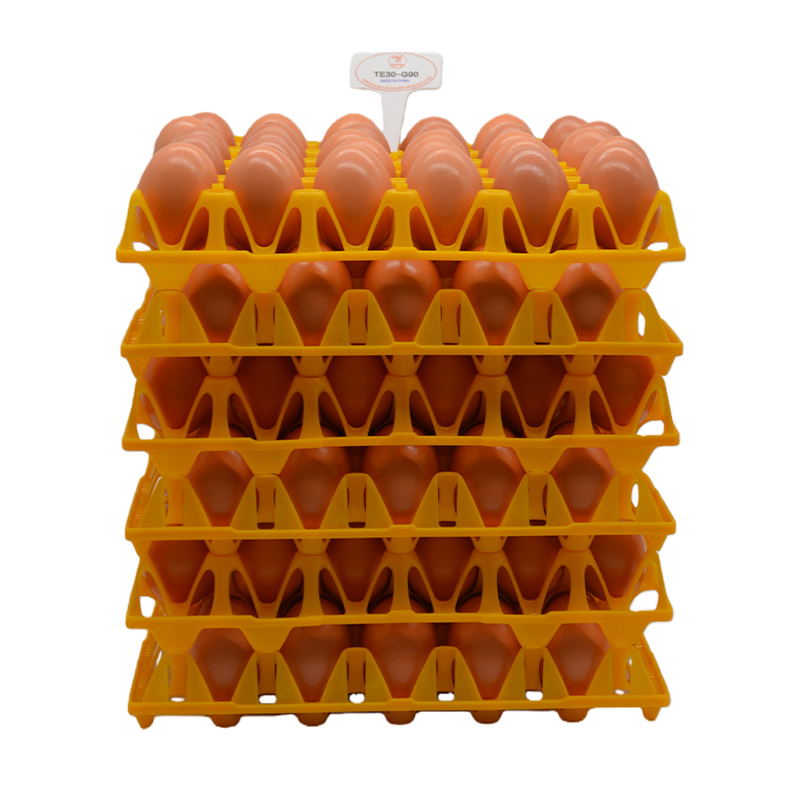

| Large nest / big egg size | G90 (large nest tray) | Wider, deeper cups accommodate large eggs |
Detail Drawing
Why Choose Jinlong Egg Trays?
✓ Full Range Coverage: 11 models covering every application – standard, heat-resistant, washing machine, robot, quail, and breeder.
✓ Automation Ready: Models 160M and 150 are specifically designed for modern automated egg processing lines.
✓ Virgin Material Quality: 100% virgin PP or PE material ensures food safety and long service life.
✓ Space-Efficient Packing: From 0.042m³ to 0.07m³ per 100 sets – minimizing freight costs.
✓ One-Stop Supplier: Same factory produces feeders, drinkers, crates, and egg trays – simplify your sourcing.
Detail Drawing
Applications
Commercial Layer Farms – Standard models (NO.130, PE160, PP160) handle high-volume daily egg collection and in-house circulation between laying house and packing room.
Hatcheries & Breeder Farms – TE36 36-egg breeder trays provide deep, protective cups for fertile eggs during setting and incubation. Deep 6.5cm design prevents egg cracking during stacking.
Automated Egg Processing Plants – Model 150 (robot tray) and 160M (washing machine tray) integrate seamlessly into modern automated egg grading, washing, and packing lines.
Quail Farms – TE72 72-quail egg tray with precisely sized small cups for quail eggs. Same 30×30cm footprint as standard chicken trays for easy integration.
Egg Distributors & Wholesalers – Stackable design and multiple capacity options suit bulk egg distribution from farm to retailer or food service.
Frequently Asked Questions
Q1: What is the difference between PE160 and PP160?
A: Both are standard 30-egg trays with identical dimensions (30×30×5cm). PE160 is made from Polyethylene (PE), which is softer and more flexible. PP160 is made from Polypropylene (PP), which is harder and slightly more rigid. Both are food-safe and durable for normal farm use.
Q2: Which model is suitable for high-temperature washing?
A: The NO.160 heat-resistant model (耐高温120°C) is designed for disinfection at temperatures up to 120°C. For automated washing machines, the 160M model is specifically engineered for mechanical washing line compatibility.
Q3: Are the 30-egg trays compatible with standard incubators?
A: The standard 30×30cm footprint is designed to fit most commercial incubator trays. For breeder/setter use, the TE36 36-egg tray (28×28cm) is recommended as it has deeper cups specifically for fertile egg protection.
Q4: How many layers can be stacked safely?
A: Loaded trays can typically be stacked 8-12 layers high depending on the model and egg weight. Empty trays can be stacked to 50+ layers. Always follow recommended stacking limits for safe handling.
Q5: What capacity does the TE36 breeder tray hold?
A: The TE36 holds 36 eggs per tray in a 28×28×6.5cm format. The deeper 6.5cm cup height provides superior protection for valuable fertile/breeder eggs during storage and transport.
Q6: What is the minimum order quantity?
A: MOQ is 100 sets per model. Mixed-model orders are accepted (total 100+ sets per container). Contact our sales team for wholesale pricing and container load discounts.
