Commercial Layer Farm Setup: Complete Equipment Checklist | Jinlong

1. Feeding Equipment - Keep Every Layer Eating Uniformly

A commercial layer typically consumes around 100-120 grams of feed per day, and feed accounts for the largest share of production cost on any layer farm. Feeder design determines how evenly birds can access feed, how much is wasted and how clean the feed stays. For flock-wide feeding, Jinlong offers two proven Europe-type options.

FTN-16 for Large Flocks

The Jinlong FTN-16 is a 16 kg capacity Europe-type transparent tube feeder built for large flocks. The high-capacity hopper means fewer refills during the day, smoother feed flow and less disturbance to the hens - an advantage when one person manages several thousand birds. For smaller flocks or rear-out groups, the FTN-8 (8 kg) model provides the same transparent tube design in a more compact size.

FTM-10 Flip-Top Feeder

The Jinlong FTM-10 is a 10 kg Europe-type chicken feeder with a practical flip-top lid. The lid keeps dust, litter and rodents away from the feed between refills, and it opens with a single action for fast, clean loading. Medium-size houses that want the hygiene benefit of a covered hopper without paying for unused capacity will find the FTM-10 a strong fit.

Transparent Design for Monitoring

Both the FTN and FTM series use transparent bodies, so the feed level and feed quality can be checked at a glance without opening the hopper. This simple visual monitoring feature helps farm managers spot blockages, moisture damage or emptying hoppers early - reducing both labour and feed waste across the whole poultry equipment setup.

2. Watering Equipment - Clean Water, Steady Production

Layers drink roughly 200-300 ml of water per day, and consumption rises sharply in hot weather. Water quality and waterer hygiene directly affect egg production, feed intake and flock health. Choosing the right layer hen equipment for watering keeps the flock hydrated with minimal labour.

DTM Series European Drinkers

The DTM Series is Jinlong's Europe-type transparent drinker line, available in DTM-6, DTM-8, DTM-11 and DTM-14 models (6 L, 8 L, 11 L and 14 L capacities). Moulded from 100% new virgin HDPE, these drinkers combine stable quality with a transparent body that lets you confirm the water level and water clarity at a glance. For flock-wide watering in layer houses, the DTM Series is the dependable daily workhorse.

DT Transparent Series

The DT transparent series covers capacities from 0.75 L up to 14 L and is fitted with integrated legs that raise the drinking trough about 7.5 cm above the floor. The elevated design keeps litter, bedding and manure out of the water, while the clear body makes water level monitoring easy. With this wide range, the DT series works for everything from brooding chicks to adult layers in floor and cage-free systems.

When to Upgrade to the DP05 Plasson

As flocks grow and stocking density rises, the number of individual waterers and the frequency of refilling become bottlenecks. That is the point to upgrade to the Jinlong DP05, a Plasson Europe-type jumbo drinker standing 68 cm high with a 38 cm diameter. Engineered for high-density poultry houses, the DP05 supplies stable, continuous water to a much larger group of birds from a single point, cutting the number of units per house and the daily refill workload. A practical rule of thumb: when a house exceeds roughly 1,000 birds or runs at high stocking density, adding DP05 units alongside the DTM/DT drinkers keeps water supply reliable through peak production and hot seasons.

3. Egg Collection and Transport - Protect Your Product

Eggs are the most fragile part of any commercial poultry setup, and handling is where many farms quietly lose money to cracks, soiling and downgrades. Egg-handling equipment should match how the farm collects, stores and ships eggs, from the daily gathering route to long-distance export.

EC01 for Daily Collection

The Jinlong EC01 is a 360-egg capacity egg shifting crate for daily collection. Its rigid, unfoldable design stacks securely at the nest or collection belt, survives repeated handling and cleans easily between batches. For farms collecting eggs two or three times a day, EC01 units keep the morning-to-evening flow organized with minimal breakage.

EC02 Foldable for Logistics

The Jinlong EC02 is a 360-egg foldable egg crate engineered for logistics. When empty, the crate collapses to reduce shipping volume by about 65% compared with standard crates - a major freight-cost saving for importers and farms moving empty crates back to the supplier. Loaded, the EC02 stacks firmly; empty, it folds flat for storage, making it the practical choice for seasonal and multi-site operations.

ECS for Long-Distance

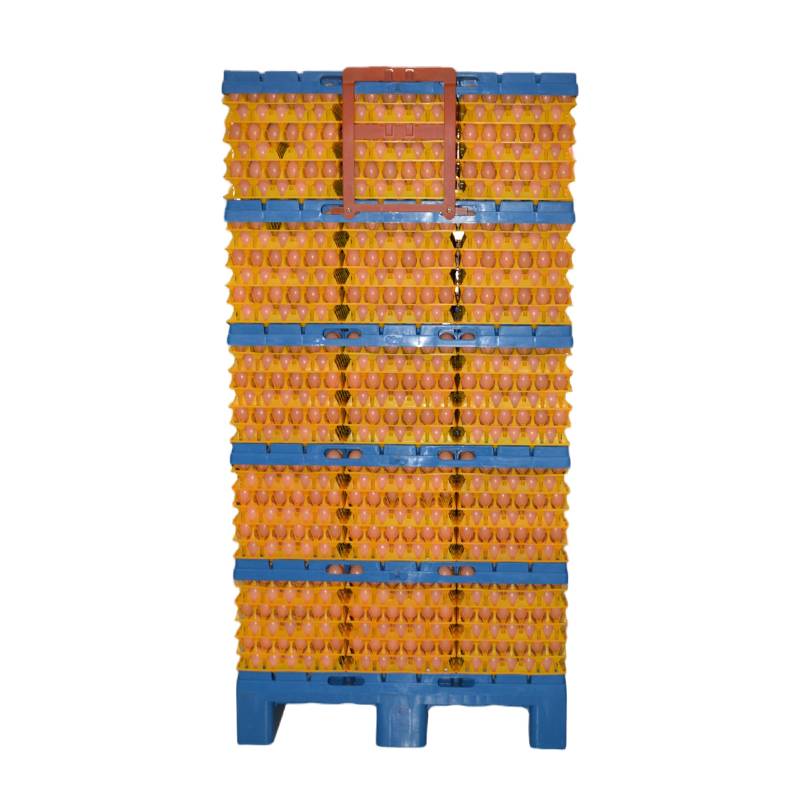

For eggs that travel long distances - regional distribution or multi-day road and sea transport - the ECS series provides the durable, stackable transport crates needed to protect eggs through loading, vibration and temperature swings. Pairing EC02 foldable crates for warehouse logistics with ECS crates for long-haul runs gives layer farms a complete egg transport chain. Smaller farms can also choose the EC03 180-egg crate for lighter daily volumes.

4. Bird Management Equipment - Brooding, Isolation and Pullet Rearing

A complete poultry equipment checklist also covers the birds that are not yet in the laying house: day-old chicks in brooding, pullets being reared, and sick or injured birds in isolation pens. Small, purpose-built tools in these areas prevent big problems later.

DT29 / DT30 Vacuum Drinkers for Isolation Pens

The Jinlong DT29 (3 L) and DT30 (6 L) vacuum drinkers use a gravity-fed, automatic water-level system that keeps water available without constant attention. Because they are quick to place and easy to clean, they are ideal for isolation pens, quarantine areas and temporary housing where a full plumbed waterline is not available.

DT31 for Small Groups

The Jinlong DT31 drinker base works with a standard water bottle and measures 27 cm in diameter with 5.5 cm legs. Its compact footprint makes it suitable for small groups, chick pens and recovery cages where space is tight, while the raised base keeps the drinking area cleaner.

AA Series for Pullets

The AA Series covers chick and pullet feeding from the first day. The AA-8, AA-8-1 and AA-8-2 turbo feeders are engineered for day-old chicks up to about 15 days of age, with an adjustable stand and lid, food-grade HDPE construction and a design that gives chicks easy access while reducing feed waste. For pullet rearing beyond the brooding phase, the AA hinged feeder range (AA-4, AA-9 to AA-13) offers space-saving troughs from 20 cm to 98 cm that hinge open for fast cleaning - a practical option for layer pullet rearing, broiler and aviary systems alike.

5. Equipment Quantity Calculator - Right-Size Your Layer Farm

The tables below show typical planning ratios for flock-wide layer farm equipment at 1,000, 5,000 and 10,000 birds, and for brooding and isolation equipment per 100 chicks. Ratios should be adjusted to your housing system (floor, cage-free or cage), stocking density and management style. Egg-crate figures assume a 90% lay rate.

Table 1. Flock-wide equipment for 1,000 / 5,000 / 10,000 layers (typical planning ratios)

Note: planning figures based on typical stocking ratios and a 90% lay rate (approx. 900 / 4,500 / 9,000 eggs per day, divided by 360-egg crates). Actual quantities depend on house design and management; contact Jinlong for a configuration matched to your project.

Table 2. Brooding and isolation equipment per 100 chicks (typical planning ratios)

Note: brooding and isolation equipment is used only in dedicated pens, not across the whole laying house. Quantities shown per 100 chicks assume standard brooding densities.

6. Quality and Maintenance Standards - Make Equipment Last

Poultry equipment is bought once but used daily for years, so material quality and upkeep decide the real cost of the setup. Two rules protect the investment: buy verified HDPE quality, and clean on a fixed schedule.

HDPE Quality Verification

High-density polyethylene (HDPE) is the workhorse material of poultry equipment, but not all HDPE is equal. Virgin HDPE, as used across Jinlong's DTM, FTN, DT, EC and DP05 product lines, delivers stronger impact resistance, better resistance to farm chemicals and a longer service life than recycled or low-grade plastics. When sourcing layer farm equipment, check three things: the raw material statement (virgin vs. recycled), the wall thickness and weight of the item, and UV stabilisation for houses with direct sunlight. Reputable suppliers can provide material specifications on request.

Cleaning Schedule

A simple, enforceable cleaning schedule prevents most water and feed hygiene problems. Rinse drinkers daily and flush any accumulated biofilm weekly with an approved disinfectant. Empty and clean feeders at least monthly, or on a rotating basis in large houses, to remove stale feed and dust. Wash egg crates and transport crates between batches and dry them fully before stacking, because damp plastic is a breeding ground for mould and bacteria. Transparent drinker and feeder bodies make this inspection fast - dirt and residues are visible immediately.

Replacement Cycle Planning

HDPE equipment does not fail suddenly; it degrades gradually through cracking, warping and UV damage. Build a replacement cycle into the farm budget: inspect high-use items such as drinker bases and feeder pans every quarter, and schedule staggered replacement so that a house never loses all of its feeders or drinkers in the same season. Buying from a manufacturer like Jinlong also keeps spare parts and matching products available for years, and supports OEM & ODM customization of colours and branding for resellers and integrators.
